1. Bend Allowance Forumlas


Drawings of sheet metal parts usually show the part in its finished (bent) state. However, the designer should supply information about the layout of the flat sheet stock before it is bent, which requires the calculation of the amount of material used at each bend. This amount of material at each bend is referred to as the bend "allowance." The individual bend allowances are shown in a developed (flat) view of the part which can thus include overall dimensions and the locations of key features prior to bending.

A. The Formulas

The first formula below provides a fraction (K) that is based on experimental results with soft steel as reported in various reference manuals.

FIRST FORUMLA (applies to soft steel)
K = ((R/T)/16) + .25 (K never greater than .5)

The above formula applies to "medium hard" materials such as soft steel and aluminum. For softer materials such as soft copper and soft brass replace the .25 with .21. For harder materials such as hard copper, bronze, CRS, and spring steel, replace the .25 with .28.

After K is determined, a second formula is used to calculate the bend allowance.

SECOND FORUMLA
Bend allowance for any angle = A • π • (R + K•T) / 180
Thus, the bend allowance for a 90° angle = π • (R + K•T) / 2

These formulas can be used whether you are working in inches or millimeters. The derivation of both formulas is explained at the end of this article.

B. Print Reading Pitfalls

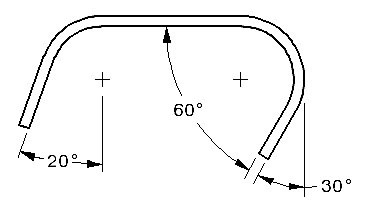

C. Inaccurate Tables in Machinery's Handbook
  • The three bend allowance tables in the Machinery's Handbook (Industrial Press) are based on three different formulas which use a constant fraction K for each different material.
  • For soft materials such as soft copper and soft brass, K is always .350.
  • For medium-hard materials such as soft steel, K is always .408.
  • For hard materials such as bronze, CRS, and spring steel, K is always .452.
  • The fact that these tables do not recognize variations in K (as the radius and the thickness change) makes them unacceptably inaccurate. The use of a different K for different radius bends (determined by the first formula above) yields much more accurate results.
D. Other Sources of Inaccuracy

Even when using the more accurate fraction K from the first formula above, we must keep in mind that any formula based on experience is still only a theoretical approximation. In the case of sheet metal bends, the above formulas do not take into account several facts.

  • The thickness of the material changes slightly at the bend.
  • The center of the neutral arc is not exactly coincident with the center of the inside radius.
  • Material deformation (stretching and compressing) is not entirely limited to the theoretical boundaries of the bend.
  • The neutral plane does not form a perfect cylinder, but "bells out" at its edges (this effects bends in very narrow strips more than wide strips).
  • The fact that these tables do not recognize variations in K (as the radius and the thickness change) makes them unacceptably inaccurate. The use of a different K for different radius bends (determined by the first formula above) yields much more accurate results.

Even so, the error introduced by these factors is far less than the error introduced by the assumption of a constant K.

However, there are many production factors which can affect the actual amount of material used in a given bend.

  • True material thickness may vary from the specification.
  • Certain production methods will stretch the material more than others.
  • Forming tools may not bottom completely, producing inaccurate bends.
  • Multiple bends done in one operation may trap panels and thus increase elongation.
  • Temperature and direction of grain affect the bend allowance.

Since the designer usually cannot control these factors, he/she must offer the best general estimate possible and expect those who fabricate the part to know how to compensate for these factors as needed. See the following articles:

E. Derivation of the Formulas
First formula

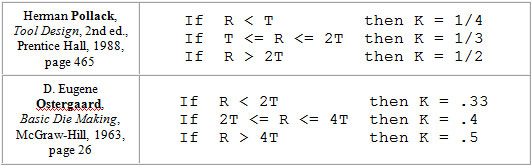

The first formula is based on experience rather than purely on mathematics. By plotting experimental data we can construct a suitable formula. Here is the data reported by Pollack and Ostergaard.

Knowledge
Knowledge

Ostergaard also indicates that for a zero-radius, 90° bend the allowance is .5T, which is the same result obtained from the second formula above when K = .3183. These data are graphed below.

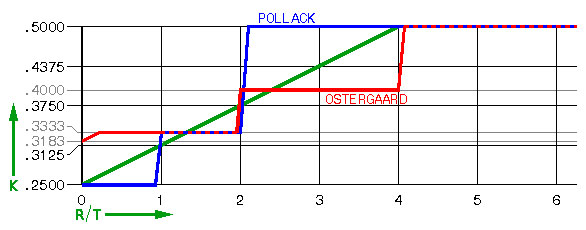

True K would certainly increase gradually (without the stair-steps), thus it is assumed that the green line is a fairly realistic representation of K (up to R/T = 4). This line's slope is 1/16 and its y-intercept is .25, so the formula is:

K = ((R/T) / 16) + .25 (K never greater than .5)
Second formula

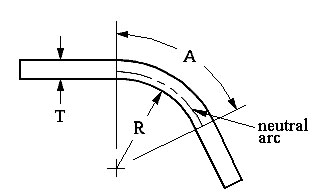

The second formula is easily derived from the formula for the circumference of a circle.

Full circumference of any circle = π • diameter = π • 2 • radius

Consider the neutral arc as part of a full circle which has a radius that is larger than the inside radius. The amount larger is merely K•T, so we substitute as follows.

Full circumference of neutral "circle" = π • 2 • (R + K•T)

Since the neutral arc is only a portion of a full circle, we place the fraction A/360 in the formula as follows.

Length of neutral arc = A • π • 2 • (R + K•T) / 360 = A • π • (R + K•T) / 180

2. Laser Cutting Sheet Metal Benefits


3. Types of Laser Cutters
There are three major types of laser cutters:
  • CO2 lasers
  • Neodymium (ND) lasers
  • ND YAG lasers

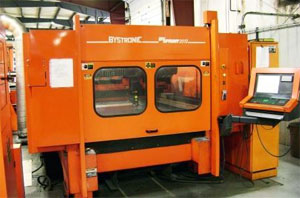

CO2 lasers are used for industrial cutting of many materials including mild steel, stainless steel, paper, titanium, wax, aluminum, plastics, fabrics and wood. YAG lasers are used primarily for cutting and scribing metals and ceramics. At Lancer Fab tech Pvt Ltd , we use three Bystronic lasers with up to 4,000 watts of laser power each to achieve unmatched tolerances in our custom manufacturing!

4.Advantages of Laser Cutting
The main advantages of laser cutting over mechanical cutting include:
  • Easier workload
  • Reduced contamination
  • Better precision = tighter tolerances
  • Reduced chance of warping
  • Can cut materials resistant to tradition cutting means
  • Consistency
  • Improved yields
  • Superior edge condition
  • Elimination of tooling
  • Nearly unlimited creative freedom

Laser cutting is more precise than plasma cutting and uses less energy cutting sheet metal. Plasma cutters can cut through thicker materials than lasers, but newer lasers are approaching the capabilities of plasma cutters.

Increased Accuracy

While laser cutting offers many advantages as outlined above, the increased accuracy they deliver creates perhaps the strongest case for their use. Oftentimes, the parts envisioned by our sales engineers can be quite complicated. Laser cutting ensures a high quality output by taking input from electronic CAD drawing data to produce complex flat form parts. The laser cutter profiles parts after they have been formed by CNC/Turret processes. Find out more about the benefits of laser cutting by contacting Lancer Fabtech Pvt Ltd –Total Sheet Metal Fabrication Provider

5. Tolerance


Hole Sizes

Holes are produced by mechanically pressing a punch tool through the sheet metal in order to rip out a slug. When the punch retracts the slug remains stuck in the die tool and a hole is left in the sheet metal. The size and shape of the punch and die tooling govern the size and shape of the hole produced in the sheet metal. For strength, the punch tip must usually be at least as large as the sheet metal thickness.

The die tool must be slightly larger than the punch to minimize tooling wear and to reduce the pressure required to punch the hole. The die clearance is generally about 10% of the material thickness. For example, the material is .100 aluminum and the punch diameter is 1.000", the die diameter would be 1.010". The size of the hole on the punch side will be the same size as the punch tool. The size of the hole on the die side will be the same size as the die tool.

Except for tooling wear, there is very little variation from one hole to the next. SMI has an extensive library of tooling, but we do not stock all possible tool sizes. We look to the engineers and draftsmen to give us a tolerance range that allows us to use our existing tooling. When that is not possible, a capital investment in new tooling is required. Generally speaking, +/-.003" (.08mm) is a reasonable hole size tolerance. Keep in mind, however, that we are measuring what will pass through the hole, not the "rim sizes" of the hole.

Hole to Hole

The accuracy of the distance from one hole to another hole is largely dependent upon the machinery. SMI's equipment will hold better than +/-.005" (.13mm) with little difficulty. However, each hole that is punched introduces stress into the sheet metal. If the part has many holes closely spaced, like a perforated pattern area, the result can resemble a baker rolling cookie dough -- the sheet metal can be expanded causing unwanted variation between holes. If this condition exists, a greater tolerance should be applied to certain areas surrounding this characteristic

Hole to Edge

Because the profile (or edges) of the part are generally punched just like any hole, the same considerations for hole-to-hole apply. When punching very near to an edge (less than 2X material thickness) the edge will be pushed out by the stress of punching the metal. This edge migration introduces variables in the accuracy of the hole location. Whenever possible, engineers should allow +/-.010" (.25mm) hole-to-edge. Resort to +/-.005 (.13mm) only when absolutely necessary.

Hole to Fold

There are several variables introduced leading up to this stage in the fabrication process. The part has been punched on a CNC Turret Press, sanded or tumbled to remove burrs, and is now being bent on a Press Brake. The deburring process may remove .003" (.08mm) when cosmetic appearance is a priority. Precision Press Brakes will position and repeat in less than .001" (.025mm). Well trained and skilled operators will be able to load the parts for forming consistently from bend to bend. Nevertheless, engineers must consider the natural variation in material thickness (5% of nominal thickness), the +/-.005" (.13mm) from the turret press, the effects of cosmetic graining, and the variation introduced by the press brake. Whenever possible, engineers should allow +/-.015" (.38mm) hole-to-fold. Resort to +/-.010 (.25mm) only when absolutely necessary.

Fold to Fold

All of the considerations of "hole to fold" apply, compounded by the fact that multiple material surfaces and thicknesses are involved. Whenever possible, engineers should allow +/-.020" (.50mm) fold-to-fold. Resort to +/-.010 (.25mm) only when absolutely necessary.

Best Practice in Tolerance Specification Although the machinery and tooling will repeat within .004" (.10mm), it is a mistake to simply engineer all mating parts expecting +/-.005" (.13mm) accuracy. Such over kill forces additional labor in sorting and inspection. The result of tolerances that are too tight is simply higher cost and lower productivity. Correctly toleranced parts still have excellent fit and function, with the added benefit of efficiency.

6. Welding Symbol

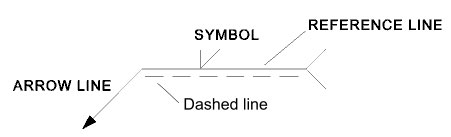

More Detailed Symbolic Representation of Weld Knowledge

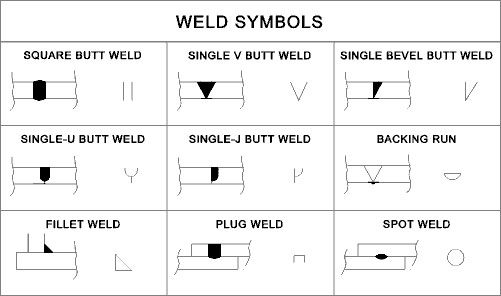

Table of Weld Symbols Knowledge

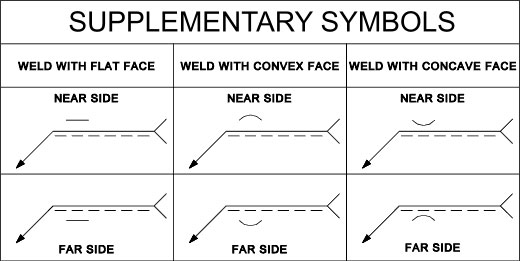

Supplementary Symbols
The weld symbols below are used in addition to the primary weld symbols as shown above. They are not used on their own.
Image text

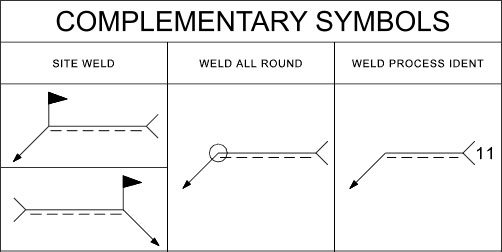

Complementary Indication
Image text

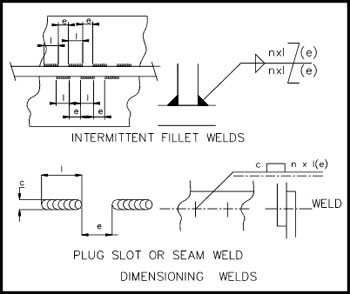

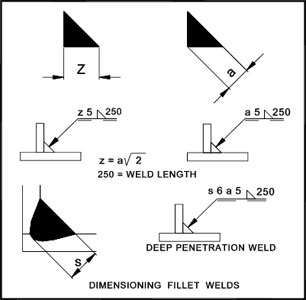

Dimensioning Welds
Image text
Image text
